Guardxmoto Quadmaster LTA50 02-05 ALT50 83-84 Motorcycle Engine Cylinder Generic

Features:
Kit is for standard bore size - 41.00 mm x 37.80 mm stroke, 12mm steel piston pin.
Compression Ratio 5.6:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Cylinder Material: Steel
Piston Material: Aluminum
Displacement: 49cc
Bore Type: Standard Bore
Bore Size: STD 41mm
Stroke: 37.80mm
Pin Diameter: 12mm
Pin Overall Length: 33.7mm

Replacement Part Number:
Cylinder : 11210-04012-0F0, 11211-04002-0F0
Cylinder Head : 11111-04001
Cylinder Base Gasket : 11241-04010
Cylinder Head Gasket : 11141-04000

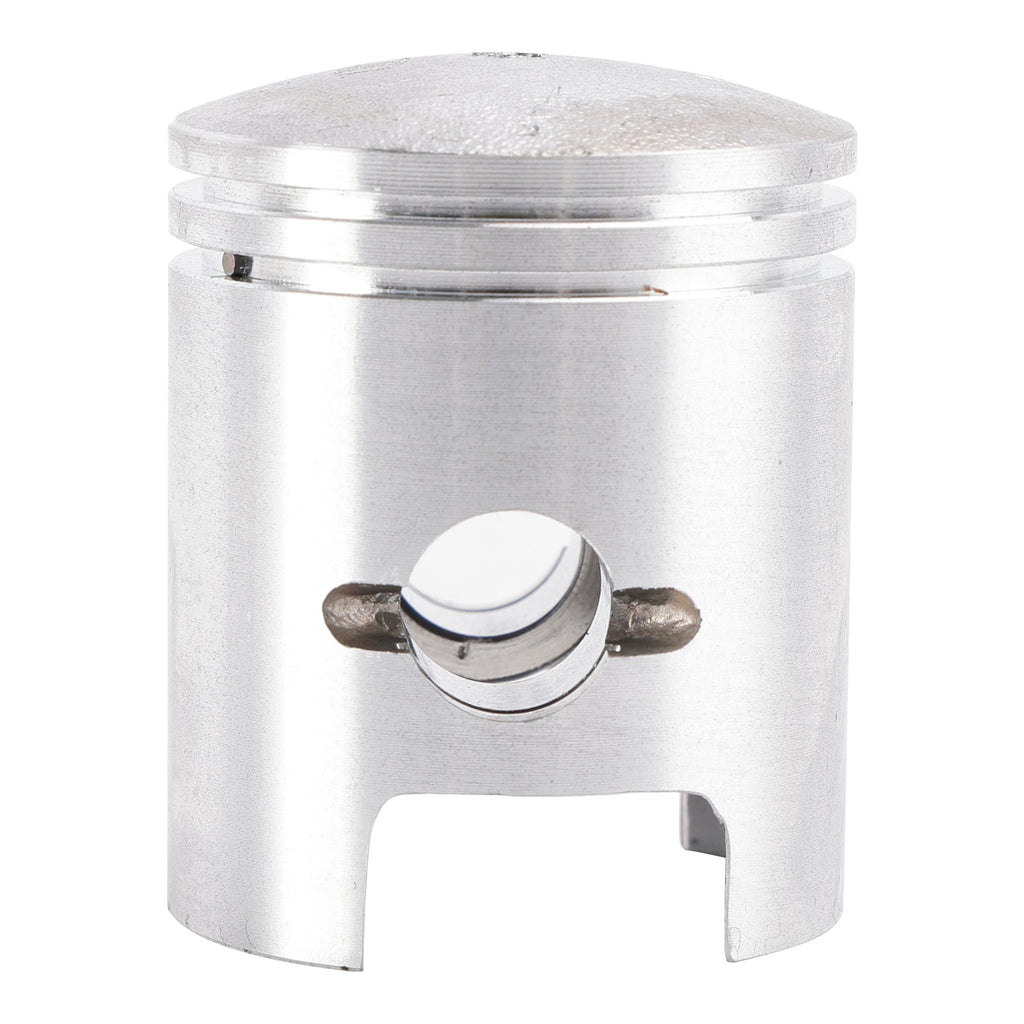

Piston : 12110-43000
Piston Pin : 12151-04700
Piston Rings (2) : 12140-16B10
Circlips (2) : 09381-12001
Wristpin Needle Bearing : 09263-12023
Spark Plug : 09482-00205
Cylinder Studs (4) : 09108-06108
Cylinder Stud Nuts (4) : 08319-31067

Fits Make/Model/Year:
Fit for Suzuki JR50 1978-2006
Fit for Suzuki LT50 Quadrunner 50 1984-1987
Fit for Suzuki LT-A50 Quadmaster 50 2002-2005

For the LT50, the cylinder does not have the vacuum port near the intake that connects to the petcock.
You can drill and top your own or just disconnect as it is not required.
Please compare our kit with your original part to make sure this is the correct kit that you want.

Package Includes:

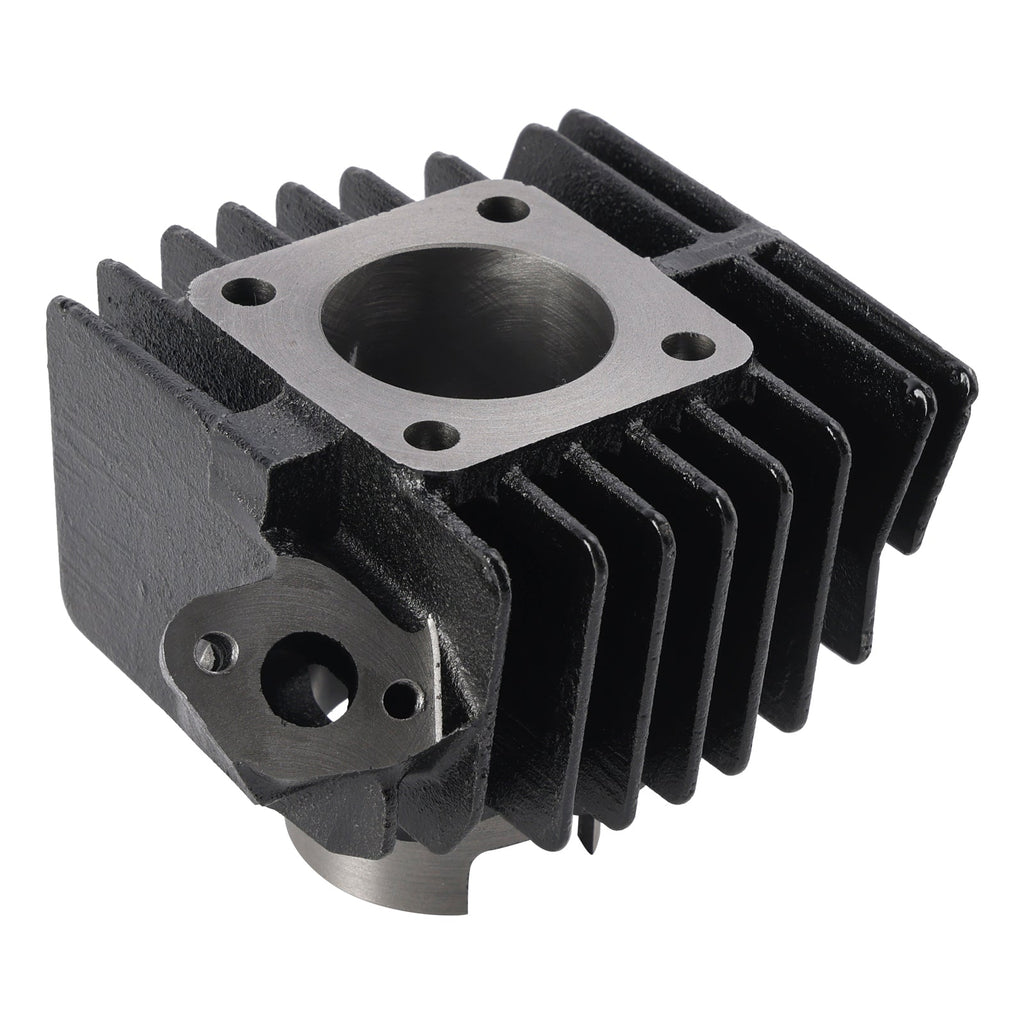

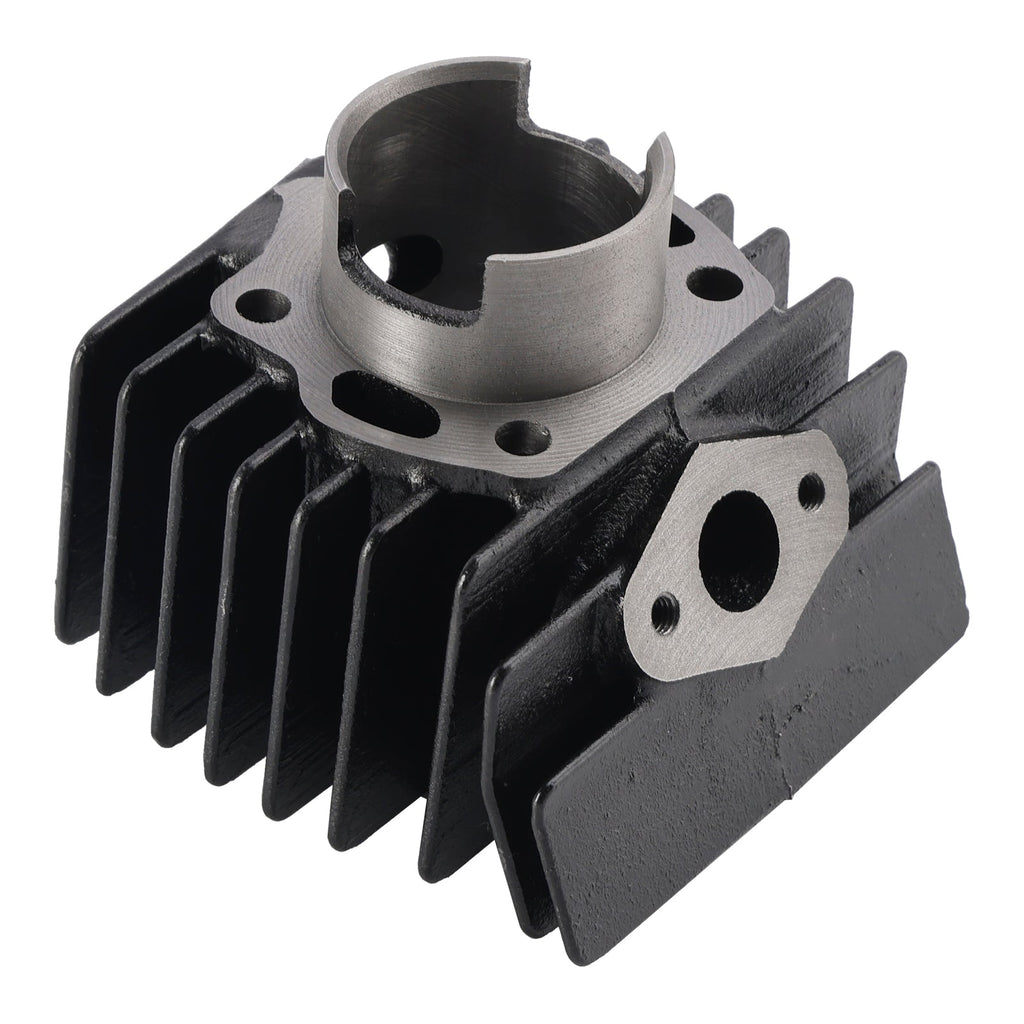

1x Cylinder

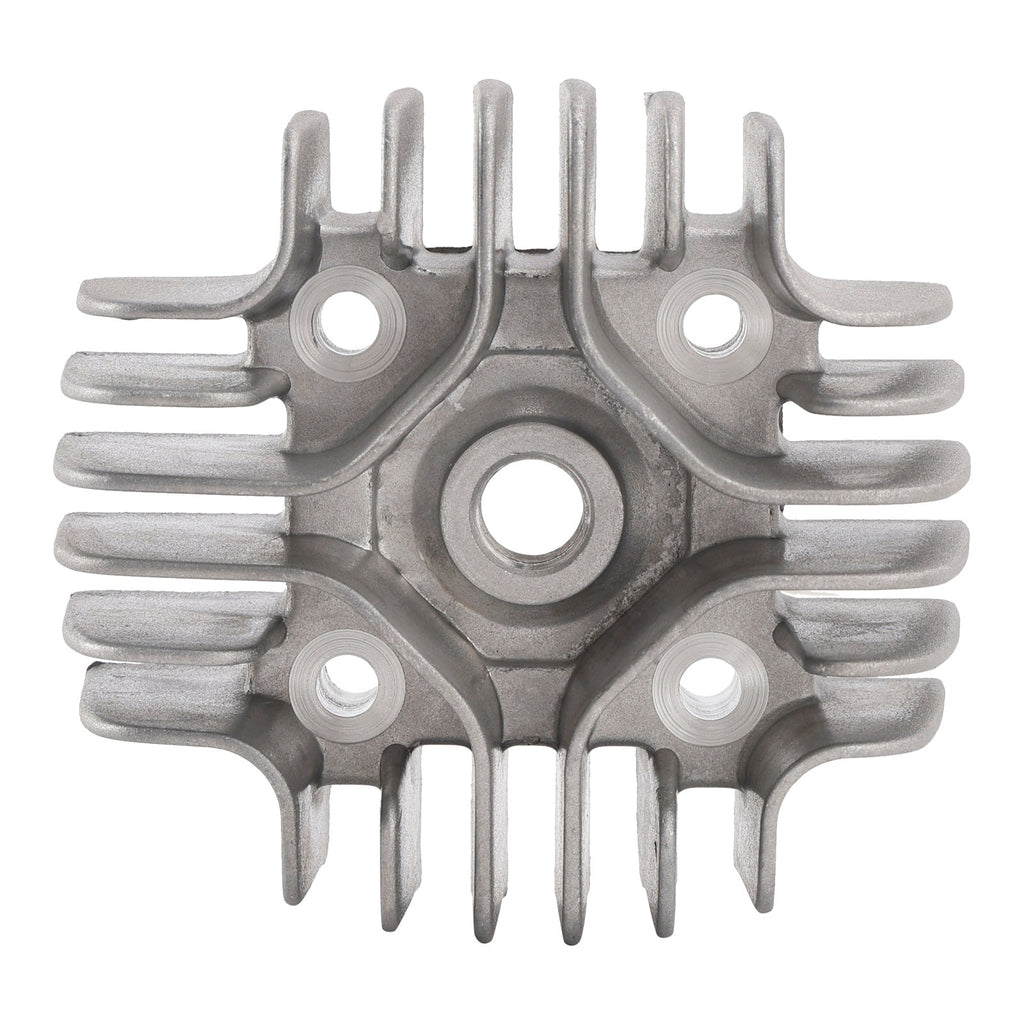

1x Cylinder Head
