Guardxmoto 2008-2026 KLX140 KLX 150 58mm Motorcycle Engine Cylinder Generic

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

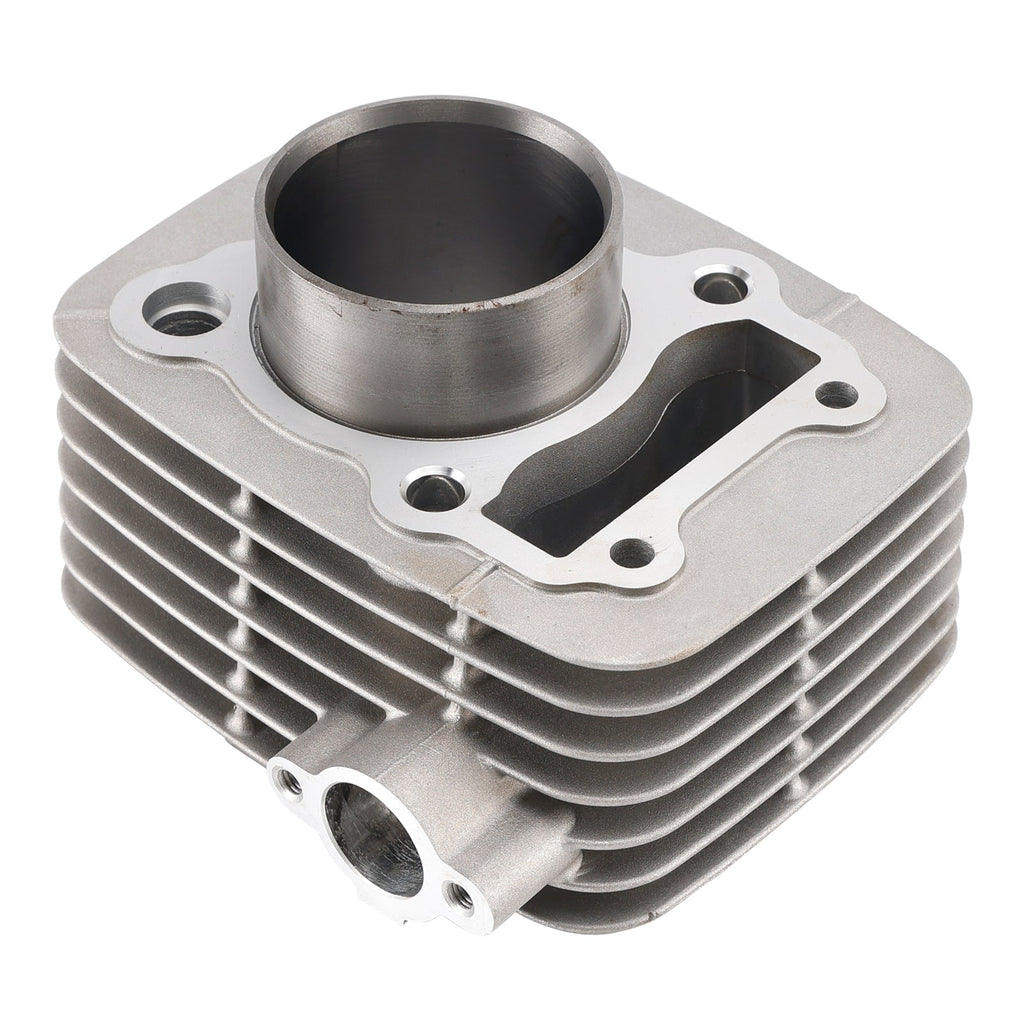

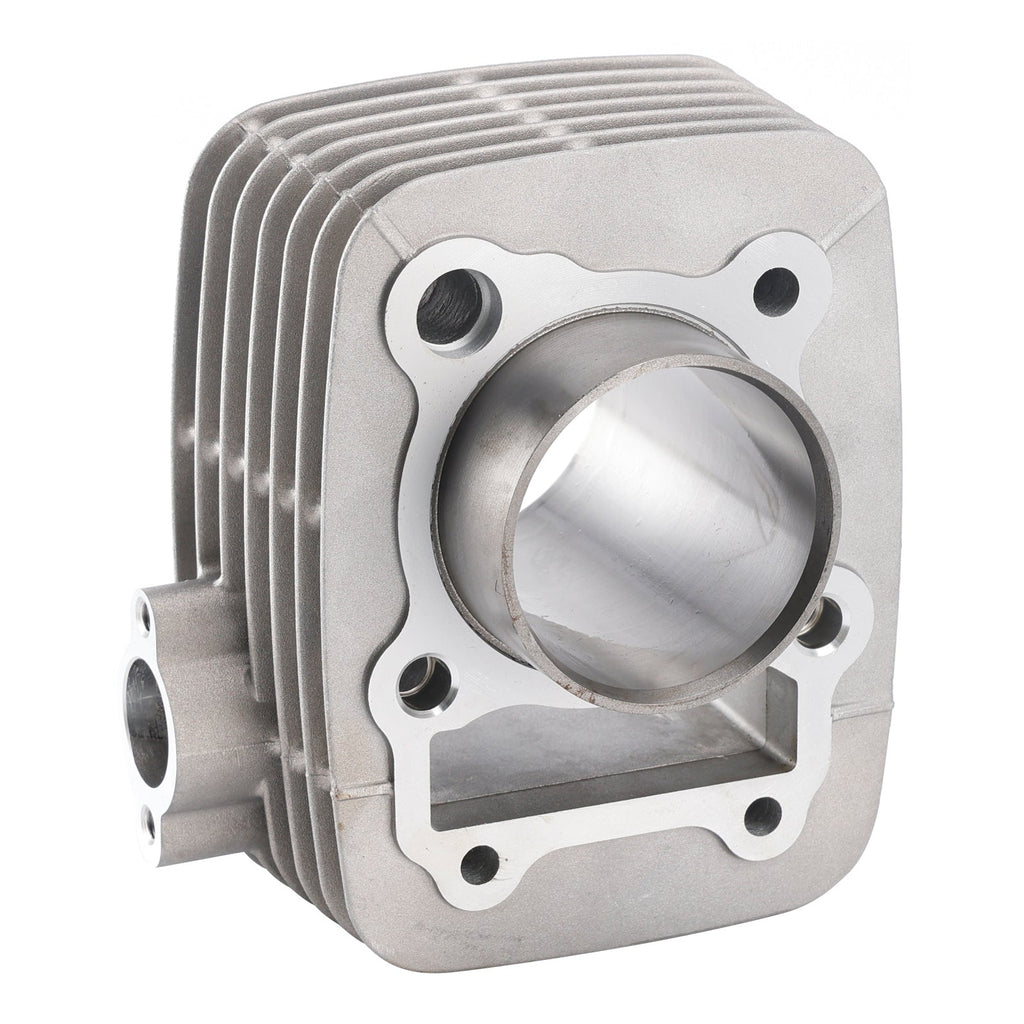

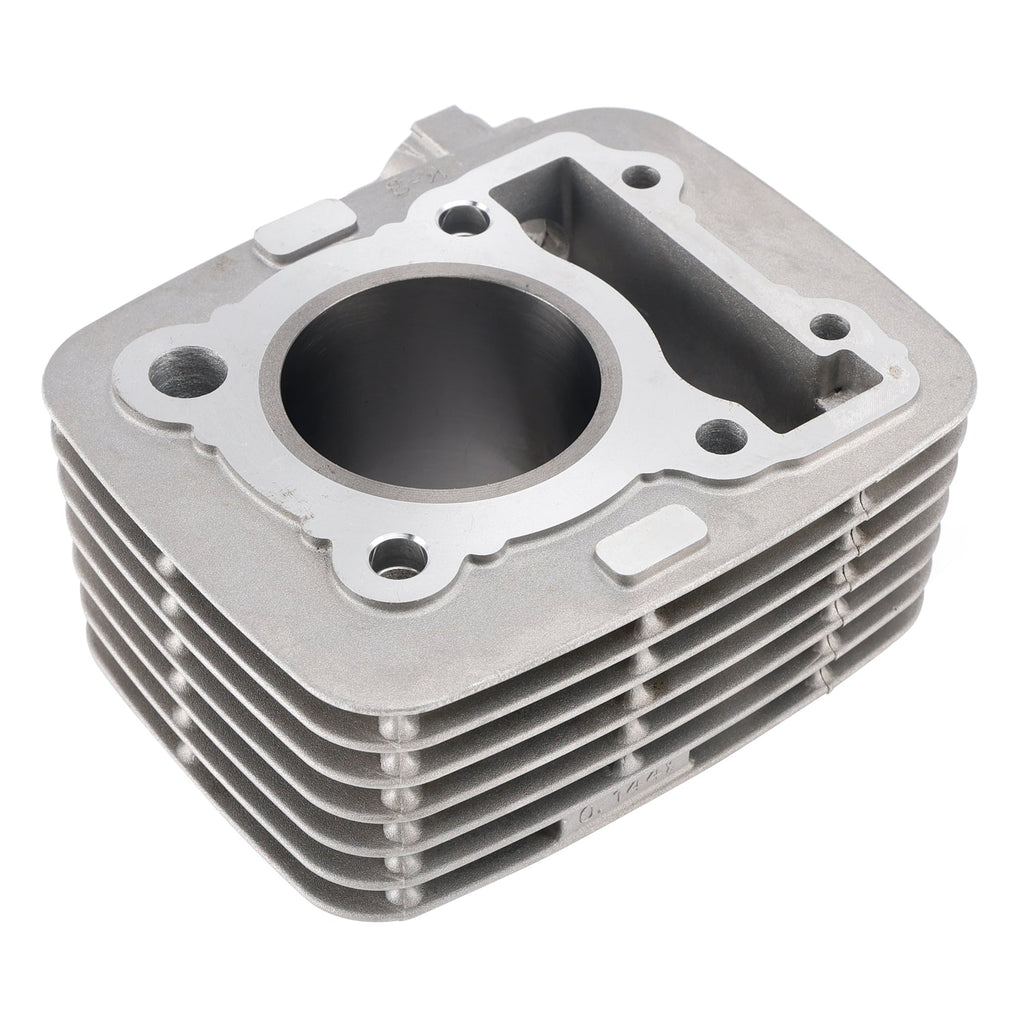

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size-58 mm x 54.4 mm stroke, 14 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 149cc
Bore Type: Standard Bore
Bore diameter: 58 mm
Stroke: 54.4 mm
Pin diameter: 14 mm
Pin Overall Length: 34 mm

Replacement Part Number:
Cylinder: 98111-0024, 98111-0035, 98111-0040
Cylinder Base Gasket: 11061-0863
Cylinder Head Gasket: 11004-0751
Piston: 13001-0769
Pin, Piston: 13002-1126
Piston Ring Set (Std): 13008-0038
Circlips, piston (2): 92033-1287, 92033-0796

Fits Make/Model/Year:
Fit for Kawasaki KLX140 2008-2020
Fit for Kawasaki KLX140L 2008-2022
Fit for Kawasaki KLX140G 2017-2020
Fit for Kawasaki KLX140R 2021-2026
Fit for Kawasaki KLX140R F 2021-2026
Fit for Kawasaki KLX140R L 2021-2026
Fit for Kawasaki KLX150BF 2015-2022
Fit for Kawasaki KLX150L 2014-2024

Package Includes:
1x 58mm Cylinder
