Guardxmoto 2003-2019 DRZ125 DRZ 125 57mm Motorcycle Engine Cylinder Generic

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

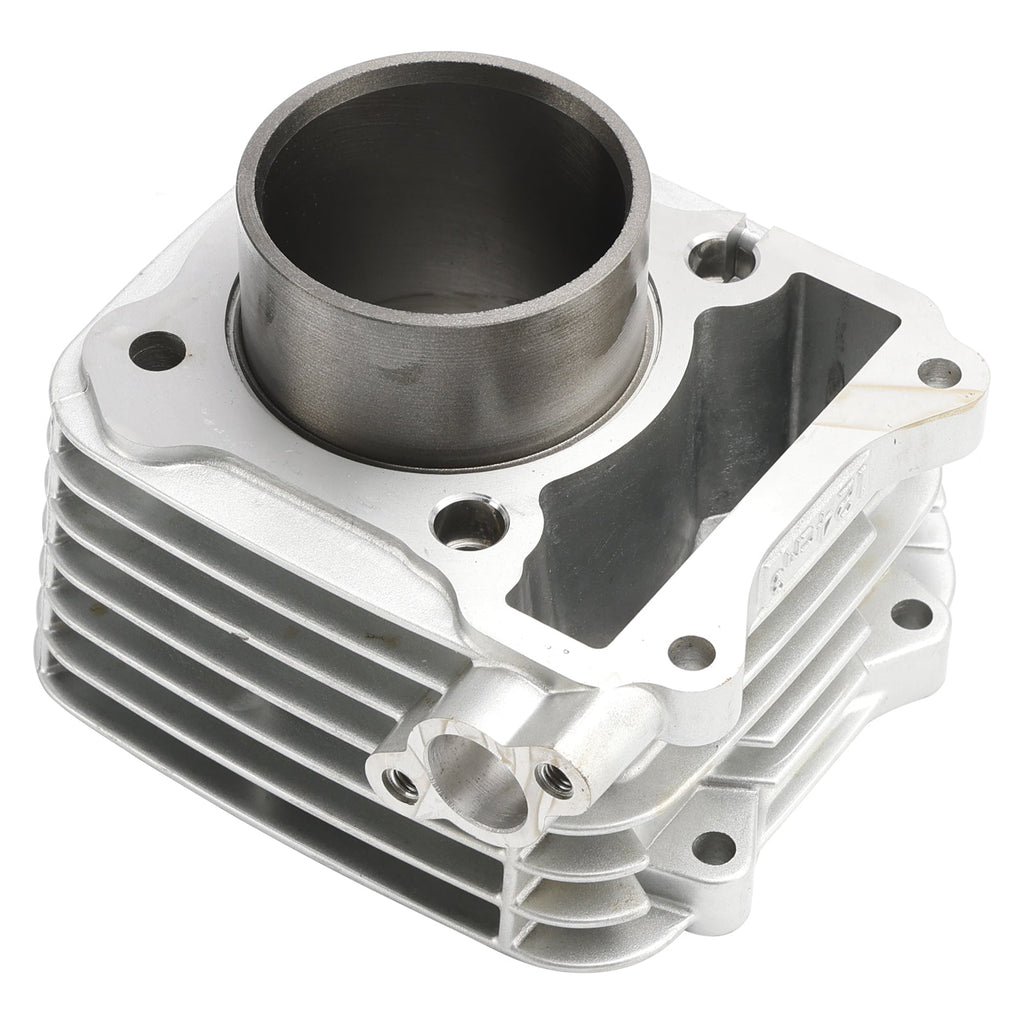

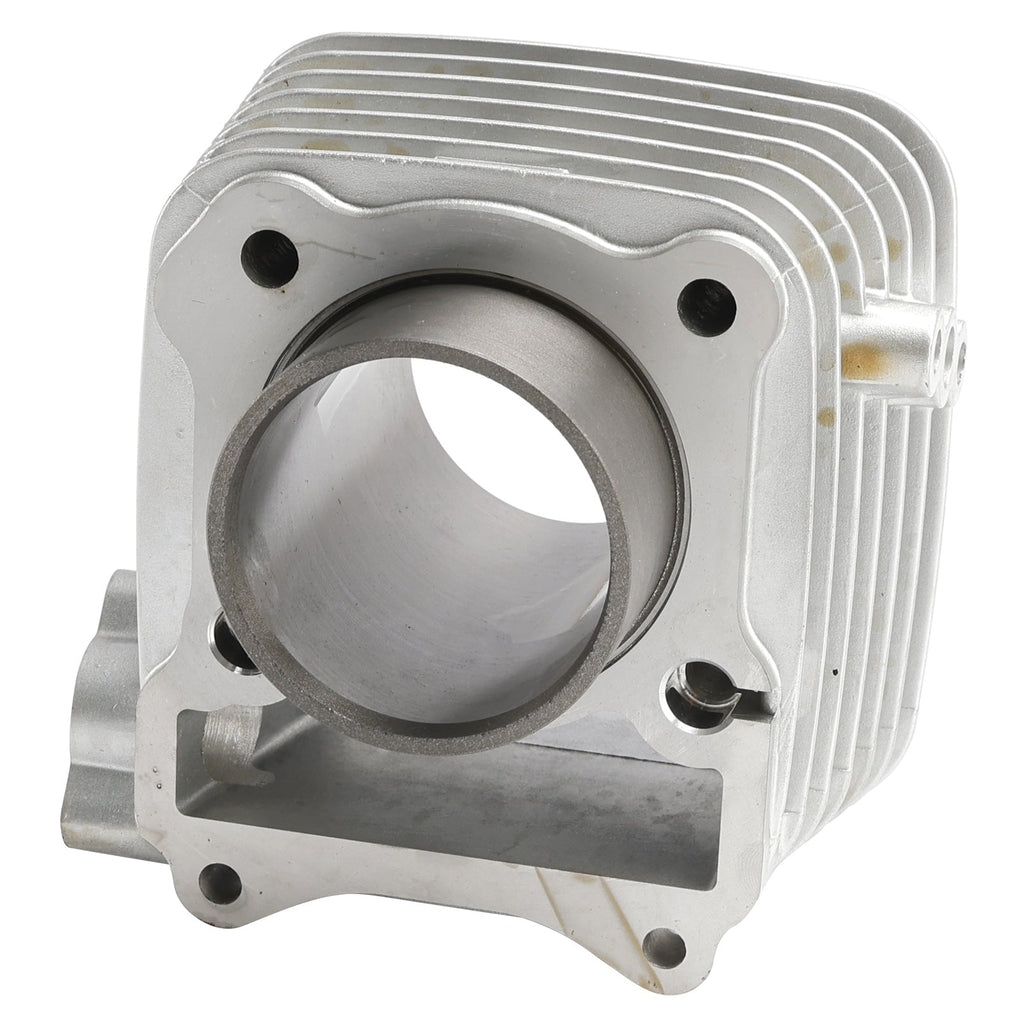

Kit includes cylinder, domed piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

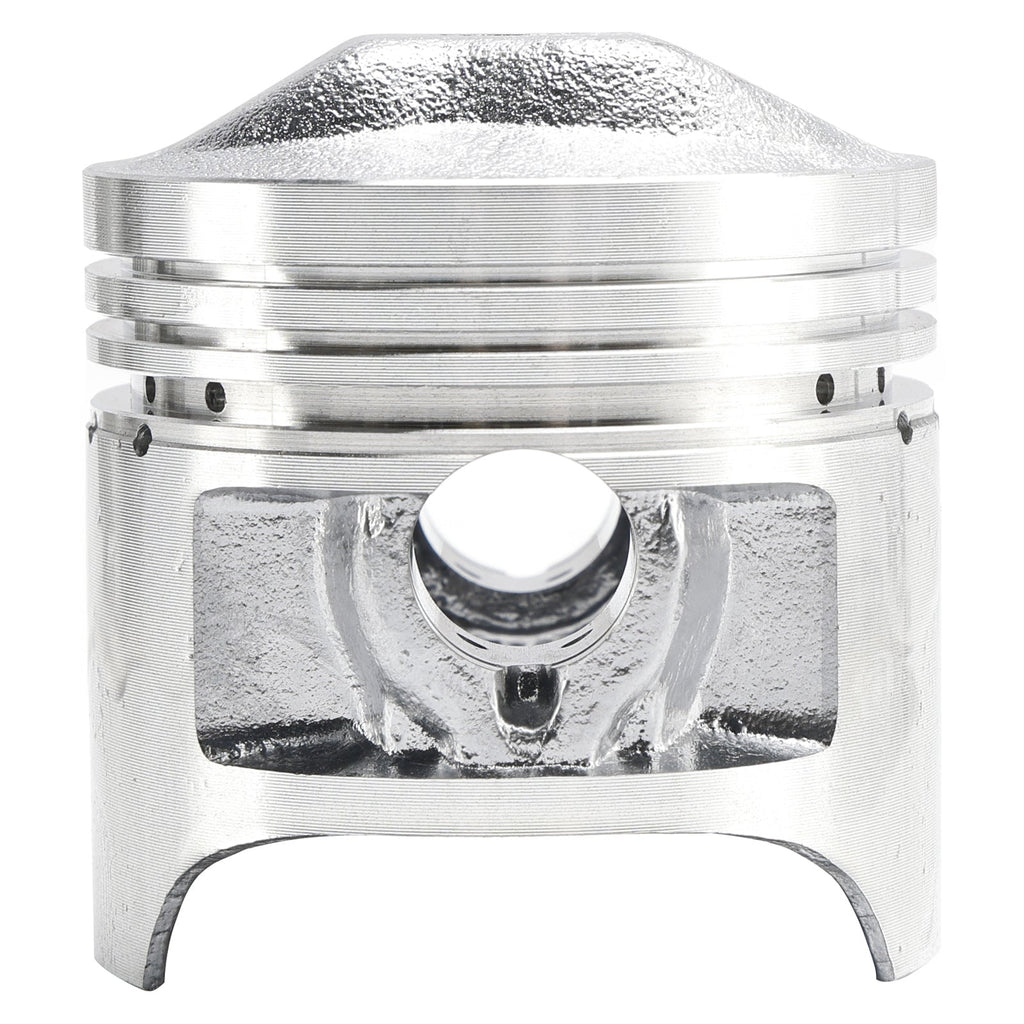

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 57.0 mm x 48.8 mm stroke, 14mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 125cc 4 stroke
Bore Type: Standard Bore
Cooling: Air-cooled

other specifications:
Bore diameter: STD 57mm
Stroke: 48.8mm
Pin diameter: 14mm
Pin Height: 41mm
Total height: 98mm
Height without sleeves: 69mm
Sleeve outer diameter: 64mm
Hole spacing diagonally: 94mm

Replacement Part Number:
Cylinder: 11210-44A11-0F0
Cylinder Base Gasket: 11241-05311
Cylinder Head Gasket: 11141-05202
Piston (Std): 12111-05202-0F0
Pin, Piston: 12151-05220-0A0
Piston Ring Set (Std): 12140-01410
Circlips, piston (2): 09381-14001
Valve Stem Seal (2): 09289-05015

Fits Make/Model/Year:
Fit for Suzuki DR-Z125 2003-2019
Fit for Suzuki DR-Z125L 2003-2022

Package Includes:
1x Cylinder
